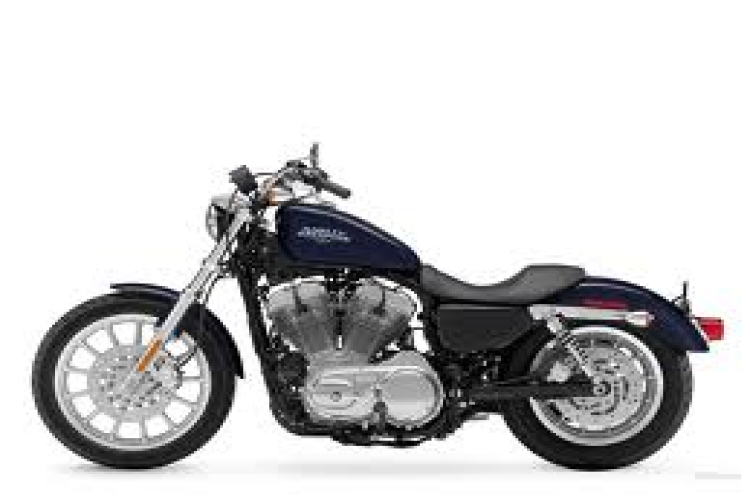

Harley-Davidson XL 883L Sportster 883 Low 2010 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.00 ccm (53.88 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
| Compression | 9.0:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | 9-plate, wet |
| Exhaust System | Chrome, staggered shorty exhaust with dual mufflers |
| Frame Type | Mild steel tubular frame; circular sections; cast junctions |
| Front Brakes | Single disc. Dual Piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39mm |
| Front Tyre | 100/90-19 |
| Rake | 30.0° |
| Rear Brakes | Single disc. Single piston |
| Rear Brakes Diameter | 292 mm (11.5 inches) |
| Rear Suspension | Coil-over shocks, dual adjustment |
| Rear Tyre | 150/80-16 |
| Trail | 117 mm (4.6 inches) |
| Front Wheel Travel | 105 mm (4.1 inches) |
| Dry Weight | 251.0 kg (553.4 pounds) |
| Fuel Capacity | 12.50 litres (3.30 gallons) |
| Ground Clearance | 100 mm (3.9 inches) |
| Oil Capacity | 2.50 litres (0.17 quarts) |
| Overall Length | 2,250 mm (88.6 inches) |
| Seat Height | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Color Options | Vivid Black, Scarlet Red, Brilliant Silver Pearl, Flame Blue Pearl |
| Comments | Silver powder-coated engine with polished treatment covers; Polished headlamp visor; Chrome trim ring with black body headlamp; Black riser; Mid-mounted rider footpegs; Stainless steel pull-back handlebars; Reduced reach solo seat; Low-profile front forks; Low-profile rear shocks; Low-profile front fender. |
| Starter | Electric |
| Modifications Compared To Previous Model | New low-profile front fender. |
