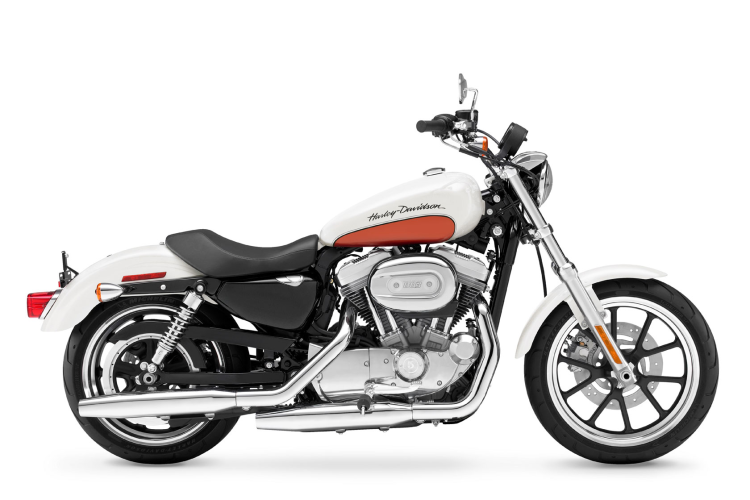

Harley-Davidson XL 883L Sportster 883 SuperLow 2011 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.32 ccm (53.90 cubic inches) |
| Engine Type | Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
| Engine Details | V2, four-stroke |
| Torque | 75.00 Nm (7.6 kgf-m or 55.3 ft.lbs) @ 3500 RPM |
| Compression | 8.9:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry-sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate, wet |
| Driveline | Primary Drive Chain, 57/34 ratio. Final Drive Belt, 68/29 ratio |
| Fuel Consumption | 4.48 litres/100 km (22.3 km/l or 52.50 mpg) |
| Greenhouse Gases | 103.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chrome, staggered shorty exhaust with dual mufflers |
| Frame Type | Mild steel, tubular frame; circular sections; cast junctions. Swingarm: mild steel, rectangular tube section, stamped junctions; MIG welded. |
| Front Brakes | Single disc. Patented, uniform expansion rotors. Dual-piston. |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39 mm Showa fork |
| Front Tyre | 120/70-ZR18 |
| Front Wheel Travel | 108 mm (4.3 inches) |
| Rake | 31.0° |
| Rear Brakes | Single disc. Patented, uniform expansion rotors. Single-piston. |
| Rear Brakes Diameter | 269 mm (10.6 inches) |
| Rear Suspension | Coil-over; preload dual-adjustable |
| Rear Tyre | 150/60-ZR17 |
| Rear Wheel Travel | 54 mm (2.1 inches) |
| Trail | 145 mm (5.7 inches) |
| Wheels | Black, Split 5-Spoke with Machined Rim |
| Dry Weight | 243.1 kg (536.0 pounds) |
| Fuel Capacity | 17.03 litres (4.50 gallons) |
| Ground Clearance | 97 mm (3.8 inches) |
| Oil Capacity | 2.80 litres (0.18 quarts) |
| Overall Height | 1,209 mm (47.6 inches) |
| Overall Length | 2,187 mm (86.1 inches) |
| Overall Width | 930 mm (36.6 inches) |
| Seat Height | 681 mm (26.8 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 255.4 kg (563.0 pounds) |
| Color Options | Vivid black, Cool blue pearl, Merlot sunglo/vivid black, birch white/sedona orange. |
| Electrical | Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
| Factory Warranty | 24 months unlimited mileage (US) |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights. Indicator Lamps: High beam, neutral, low oil pressure, turn signal |
| Light | 55-watt low beam, 60-watt high beam |
| Starter | Electric |
