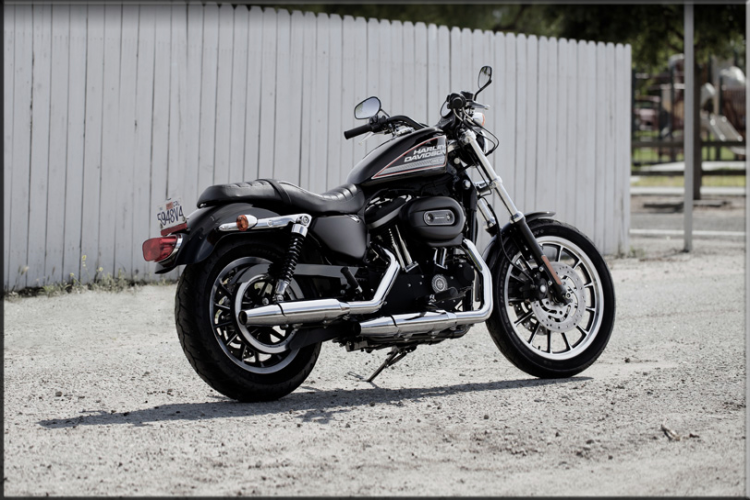

Harley-Davidson XL883R Sportster 883 R Roadster 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 883.00 ccm (53.88 cubic inches) |
| Engine Type | Air-cooled, Evolution®. Silver, powder-coated engine with polished covers. |
| Engine Details | V2, four-stroke |
| Torque | 70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM |
| Compression | 9.0:1 |
| Bore X Stroke | 76.2 x 96.8 mm (3.0 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry-sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | 9-plate, wet |
| Driveline | Belt, 28/68 ratio. Primary drive: Chain, 34/57 ratio. |
| Exhaust System | Chrome, staggered shorty exhaust with dual mufflers |
| Frame Type | Mild steel tubular frame; circular sections; cast junctions |
| Front Brakes | Single disc. Dual-piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39mm |
| Front Tyre | 100/90-19 |
| Front Wheel Travel | 141 mm (5.6 inches) |
| Rake | 30.0° |
| Rear Brakes | Single disc. Single-piston |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Rear Suspension | Coil-over |
| Rear Tyre | 150/80-16 |
| Rear Wheel Travel | 104 mm (4.1 inches) |
| Wheels | Tyres |
| Dry Weight | 251.0 kg (553.4 pounds) |
| Fuel Capacity | 12.50 litres (3.30 gallons) |
| Ground Clearance | 141 mm (5.6 inches) |
| Oil Capacity | 2.60 litres (0.17 quarts) |
| Overall Length | 2,245 mm (88.4 inches) |
| Seat Height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 255.4 kg (563.0 pounds) |
| Color Options | Vivid Black, Brilliant Silver Pearl, Mirage Orange Pearl |
| Electrical | Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
| Instruments | Handlebars-mounted electronic speedometer with odometer; |
| Starter | Electric |
