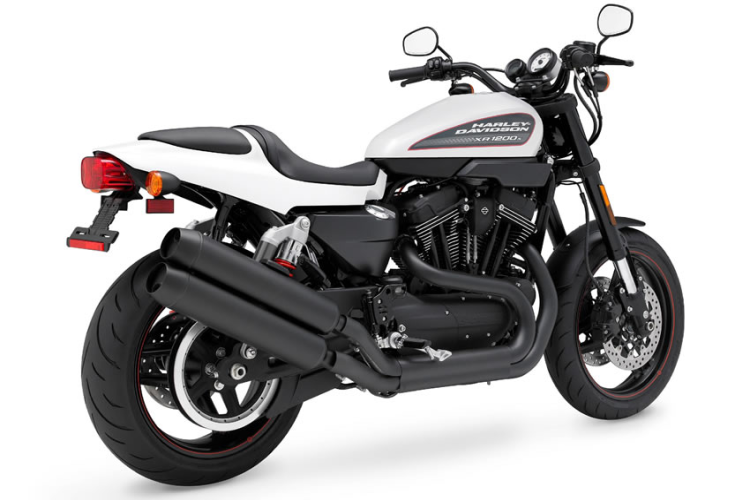

Harley-Davidson XR 1200X 2011 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1201.25 ccm (73.30 cubic inches) |
| Engine Type | Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters. |
| Engine Details | V2, four-stroke |
| Torque | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 4000 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry-sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate, wet |
| Driveline | Primary Drive Chain, 57/38 ratio. Final Drive Belt, 68/29 ratio. |
| Fuel Consumption | 5.17 litres/100 km (19.3 km/l or 45.50 mpg) |
| Greenhouse Gases | 119.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Black, upswept, straight-shot, high-performance exhaust with dual mufflers |
| Frame Type | Mild steel tubular frame, circular sections; cast junctions |
| Front Brakes | Double disc. 4-piston. |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 43 mm Inverted Showa fork |
| Front Tyre | 120/70-ZR18 |
| Front Wheel Travel | 125 mm (4.9 inches) |
| Rake | 29.0° |
| Rear Brakes | Single disc. Single-piston. |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Rear Suspension | Fully-adjustable |
| Rear Tyre | 180/55-ZR17 |
| Rear Wheel Travel | 89 mm (3.5 inches) |
| Trail | 132 mm (5.2 inches) |
| Wheels | Black, 3-spoke Cast Aluminum |
| Dry Weight | 249.9 kg (551.0 pounds) |
| Fuel Capacity | 13.25 litres (3.50 gallons) |
| Ground Clearance | 150 mm (5.9 inches) |
| Oil Capacity | 2.80 litres (0.18 quarts) |
| Overall Height | 1,161 mm (45.7 inches) |
| Overall Length | 2,225 mm (87.6 inches) |
| Overall Width | 930 mm (36.6 inches) |
| Seat Height | 742 mm (29.2 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 259.9 kg (573.0 pounds) |
| Color Options | Black Denim, White Hot Denim |
| Electrical | Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator. |
| Factory Warranty | 24 months with unlimited mileage. (US) |
| Instruments | Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, |
| Light | 55-watt low beam, 60-watt high beam |
| Starter | Electric |
