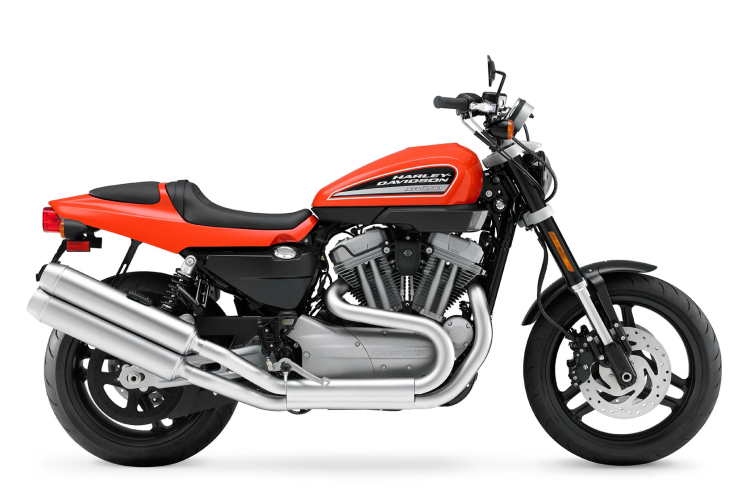

Harley-Davidson XR1200 2010 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Transmission Type Final Drive | Belt |
| Clutch | 8-plate, wet |
| Exhaust System | Upswept, high-volume 2-1-2 straight shot |
| Displacement | 1202.00 ccm (73.35 cubic inches) |
| Engine Details | V2, four-stroke |
| Power | 90.00 HP (65.7 kW)) @ 7000 RPM |
| Torque | 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 3700 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Air |
| Gearbox | 5-speed |
| Frame Type | Mild steel tubular frame; circular sections; cast junctions |
| Front Brakes | Double disc. Dual 4-piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 43 mm Inverted fork |
| Front Tyre | 120/70-ZR18 |
| Rake | 29.3° |
| Rear Brakes | Single disc. Single piston |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Rear Suspension | Coil-over shocks |
| Rear Tyre | 180/55-ZR17 |
| Trail | 130 mm (5.1 inches) |
| Dry Weight | 250.0 kg (551.2 pounds) |
| Fuel Capacity | 13.30 litres (3.51 gallons) |
| Ground Clearance | 145 mm (5.7 inches) |
| Oil Capacity | 2.50 litres (0.17 quarts) |
| Overall Length | 2,195 mm (86.4 inches) |
| Power Weight Ratio | 0.3600 HP/kg |
| Seat Height | 765 mm (30.1 inches) If adjustable, lowest setting. |
| Color Options | Vivid Black, Mirage Orange Pearl, Brilliant Silver Denim |
| Comments | Wide, black handlebars for dirt track looks and superb control; Downdraft Electronic Sequential Port Fuel Injection (ESPFI) and electronically controlled active intake system; Unique, lightweight cast wheels with flat track inspired 3-spoke design; Powerful Nissin® dual front brakes with four piston front and single-piston floating rear calipers, and 292mm (front) / 260mm (rear) patented uniform expansion rotors; Specially developed Dunlop® Qualifier D209 tyres; Sport-tuned Showa® suspension featuring 43mm inverted front forks and pre-load adjustable twin rear shock absorbers; Unique compact instruments; Aircraft style aluminium alloy fuel fil |
| Starter | Electric |
