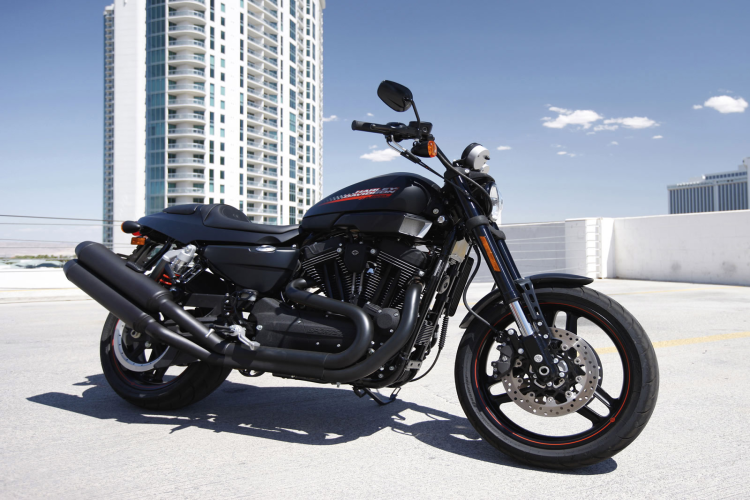

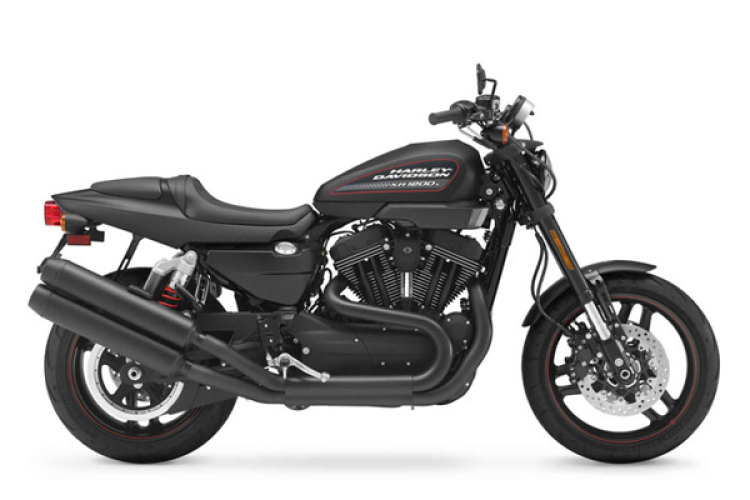

Harley-Davidson XR1200X 2010 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1201.25 ccm (73.30 cubic inches) |
| Engine Type | Air-cooled, Evolution® |
| Engine Details | V2, four-stroke |
| Torque | 100.22 Nm (10.2 kgf-m or 73.9 ft.lbs) @ 4000 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication System | Dry-sump |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary drive chain, 57/38 ratio. Final Drive Belt, 68/28 ratio |
| Fuel Consumption | 5.35 litres/100 km (18.7 km/l or 43.97 mpg) |
| Greenhouse Gases | 124.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Black, upswept, straight-shot high-performance exhaust with dual mufflers |
| Power | 90.00 HP (65.7 kW)) @ 7000 RPM |
| Valves Per Cylinder | 2 |
| Frame Type | Mild steel tubular frame; circular sections; cast junctions |
| Front Brakes | Single disc. Dual-piston |
| Front Brakes Diameter | 292 mm (11.5 inches) |
| Front Suspension | 39 mm |
| Front Tyre | 120/70-ZR18 |
| Front Wheel Travel | 92 mm (3.6 inches) |
| Rake | 28.9° |
| Rear Brakes | Single disc. Single-piston |
| Rear Brakes Diameter | 260 mm (10.2 inches) |
| Rear Suspension | Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks. |
| Rear Tyre | 180/55-ZR17 |
| Rear Wheel Travel | 41 mm (1.6 inches) |
| Trail | 132 mm (5.2 inches) |
| Wheels | Black, 3-spoke Cast Aluminum |
| Dry Weight | 249.9 kg (551.0 pounds) |
| Fuel Capacity | 13.25 litres (3.50 gallons) |
| Ground Clearance | 150 mm (5.9 inches) |
| Oil Capacity | 2.60 litres (0.17 quarts) |
| Overall Length | 2,225 mm (87.6 inches) |
| Seat Height | 742 mm (29.2 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 259.9 kg (573.0 pounds) |
| Power Weight Ratio | 0.3600 HP/kg |
| Color Options | Black Denim, White Hot Denim |
| Electrical | Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
| Factory Warranty | 24 months, unlimited mileage. |
| Instruments | Uniquely-styled, handlebar-mounted, compact digital speedometer and large, analog tachometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout |
| Starter | Electric |
| Comments | Blacked-out styling including denim paint and black powertrain and exhaust; Wide, low-rise handlebars for superb control; Downdraft Electronic Sequential Port Fuel Injection (ESPFI) and electronically controlled active intake system; Unique, lightweight cast wheels with flat track inspired 3-spoke design and orange pinstripe; Powerful Nissin® dual front brakes; Dual floating rotors (front) for improved braking performance; Specially developed Dunlop® Qualifier D209 tyres; Sport-tuned Showa® piggyback suspension featuring fully adjustable, 43mm inverted front forks and fully adjustable rear shocks; Unique compact instruments; Aircraft style aluminium alloy fuel filler |
