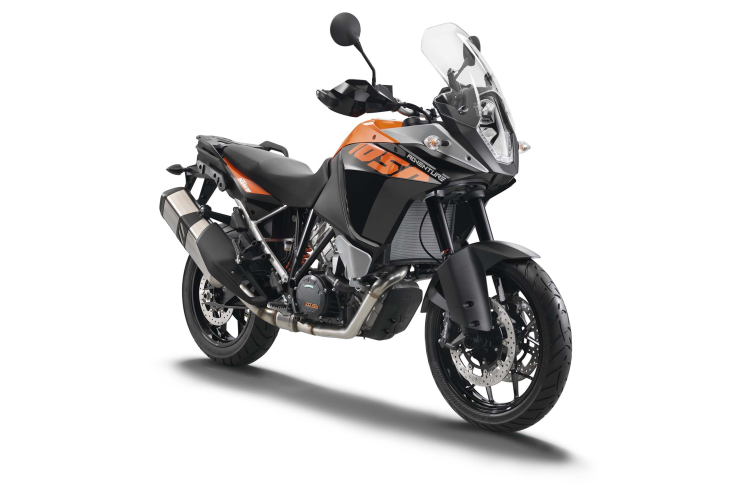

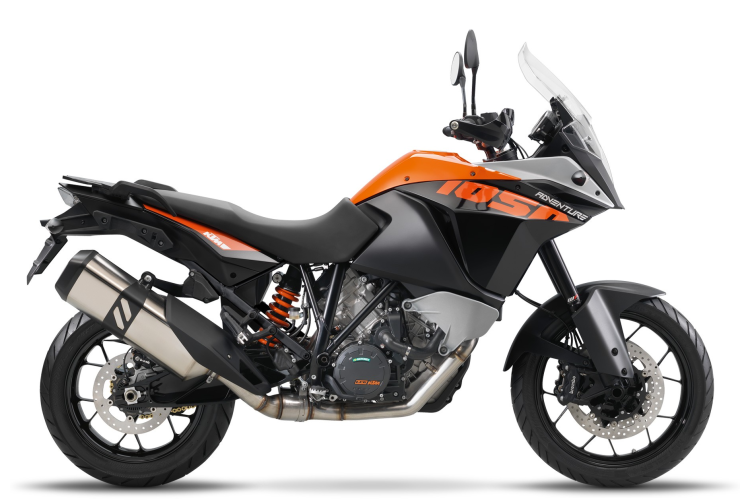

KTM 1050 Adventure 2016 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1050.00 ccm (64.07 cubic inches) |
| Engine Type | 75° V arrangement |
| Engine Details | Twin, four-stroke |
| Power | 95.00 HP (69.3 kW)) |
| Bore X Stroke | 103.0 x 63.0 mm (4.1 x 2.5 inches) |
| Fuel System | Injection |
| Ignition | Keihin EMS with RBW, twin ignition |
| Lubrication System | Forced oil lubrication with 3 rotor pumps |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | PASC slipper clutch, hydraulically actuated |
| Driveline | 5/8 x 5/16 X Ring. Primary drive: 40:76. |
| Frame Type | Chromium-Molybdenum steel trellis frame, powder coated |
| Front Brakes | Double disc. ABS. Four-piston calipers. Radially mounted. Bremo |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | WP upside-down Ø 43 mm |
| Front Wheel Travel | 185 mm (7.3 inches) |
| Rake | 26.0° |
| Rear Brakes | Single disc. ABS. Two-piston calipers. Bremo. |
| Rear Brakes Diameter | 267 mm (10.5 inches) |
| Rear Suspension | WP monoshock |
| Rear Wheel Travel | 190 mm (7.5 inches) |
| Dry Weight | 212.0 kg (467.4 pounds) |
| Fuel Capacity | 23.00 litres (6.08 gallons) |
| Ground Clearance | 220 mm (8.7 inches) |
| Power Weight Ratio | 0.4481 HP/kg |
| Seat Height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Color Options | Orange/Black |
| Comments | Small windscreen. Ride-by-wire system. Traction control with different modes. |
| Starter | Electric |
