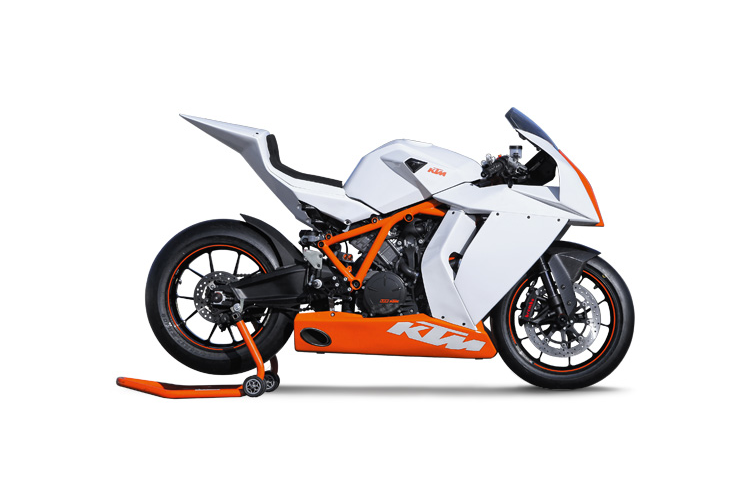

KTM 1190 RC8 R Race Specs 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1195.00 ccm (72.92 cubic inches) |
| Engine Type | Otto motor, 75° V arrangement |
| Engine Details | V2, four-stroke |
| Power | 177.00 HP (129.2 kW)) @ 4000 RPM |
| Torque | 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM |
| Compression | 13.5:1 |
| Bore X Stroke | 105.0 x 69.0 mm (4.1 x 2.7 inches) |
| Fuel System | Injection. Keihin |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication System | Dry-sump lubrication with 3 rotor pumps |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 17:37. Primary drive: 40:76. 5/8 x 1/4” (520) X and #8209;Ring chain. |
| Frame Type | Tubular space frame made from chrome molybdenum steel, powder-coated |
| Front Brakes | Double disc. Radially mounted four-piston brake calipers; floating brake discs |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | WP Suspension Up Side Down 4354 |
| Front Tyre | 120/70-17 |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rear Brakes | Single disc. Two piston, fixed caliper |
| Rear Brakes Diameter | 220 mm (8.7 inches) |
| Rear Suspension | WP Suspension 4618 DACC |
| Rear Tyre | 190/55-17 |
| Rear Wheel Travel | 120 mm (4.7 inches) |
| Dry Weight | 173.0 kg (381.4 pounds) |
| Ground Clearance | 110 mm (4.3 inches) |
| Power Weight Ratio | 1.0231 HP/kg |
| Seat Height | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Color Options | White/orange |
| Comments | Also is called KTM 1190 RC8 R Track in Europe. |
| Starter | Electric |
