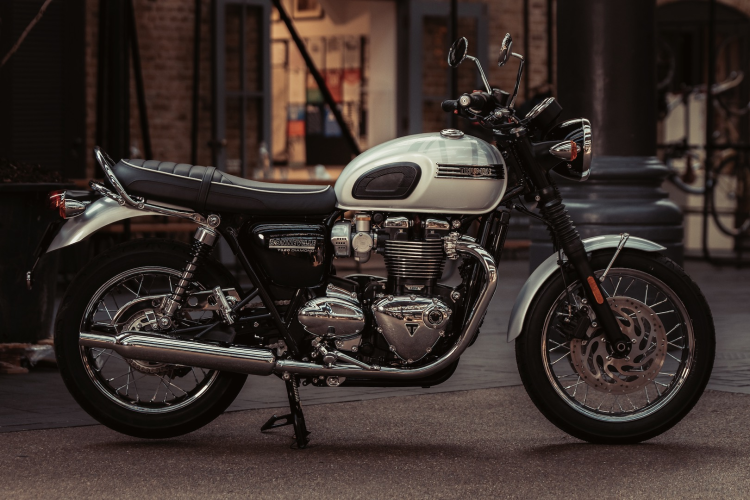

Triumph Bonneville T120 Diamond Edition 2019 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1200.00 ccm (73.22 cubic inches) |
| Engine Details | Twin, four-stroke |
| Power | 80.00 HP (58.4 kW)) @ 6550 RPM |
| Torque | 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 3100 RPM |
| Compression | 10.0:1 |
| Bore X Stroke | 97.6 x 80.0 mm (3.8 x 3.1 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Multipoint sequential electronic fuel injection with SAI |
| Ignition | Digital-inductive type via engine management system |
| Cooling System | Air |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet, multi-plate assist clutch |
| Driveline | X ring chain. Primary drive: Gear. |
| Fuel Consumption | 4.50 litres/100 km (22.2 km/l or 52.27 mpg) |
| Greenhouse Gases | 104.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Chromed 2 into 2 exhaust system with twin chrome silencers |
| Frame Type | Tubular steel cradle. Twin-sided, tubular steel swing arm. |
| Front Brakes | Single disc. ABS. Nissin 2-piston floating caliper |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Front Suspension | Kyb 41mm cartidge forks, |
| Front Tyre | 100/90-18 |
| Front Wheel Travel | 120 mm (4.7 inches) |
| Rake | 25.5° |
| Rear Brakes | Single disc. ABS. Nissin 2-piston floating caliper |
| Rear Brakes Diameter | 255 mm (10.0 inches) |
| Rear Suspension | Kyb twin shocks with adjustable preload, |
| Rear Tyre | 150/70-R17 |
| Rear Wheel Travel | 120 mm (4.7 inches) |
| Trail | 105 mm (4.1 inches) |
| Wheels | Wire spoked. |
| Dry Weight | 224.0 kg (493.8 pounds) |
| Fuel Capacity | 14.50 litres (3.83 gallons) |
| Oil Capacity | 4.50 litres (0.30 quarts) |
| Overall Height | 1,100 mm (43.3 inches) |
| Overall Length | 2,230 mm (87.8 inches) |
| Overall Width | 785 mm (30.9 inches) |
| Power Weight Ratio | 0.3571 HP/kg |
| Seat Height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Color Options | White/Silver |
| Factory Warranty | 24 months unlimited milage |
| Instruments | LCD multi-functional instrument pack |
| Modifications Compared To Previous Model | The production run for the Bonneville T120 Diamond Edition is limited to 900, and comes with a numbered certificate, signed by Triumph Motorcycles CEO Nick Bloor; a collector’s item in itself. |
| Starter | Electric |
