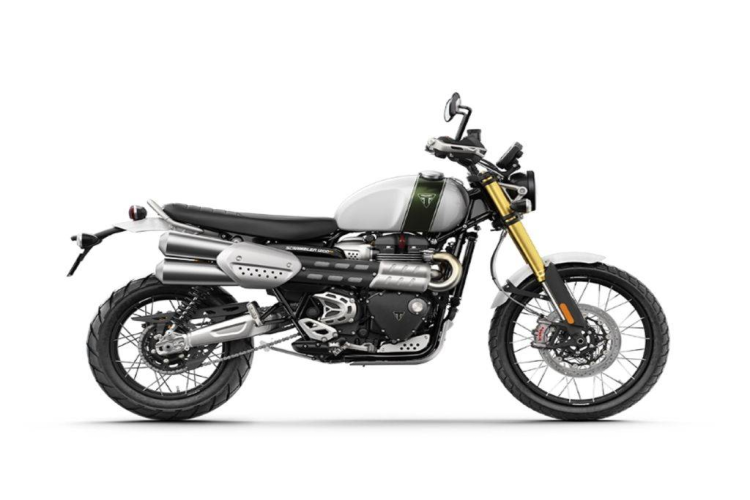

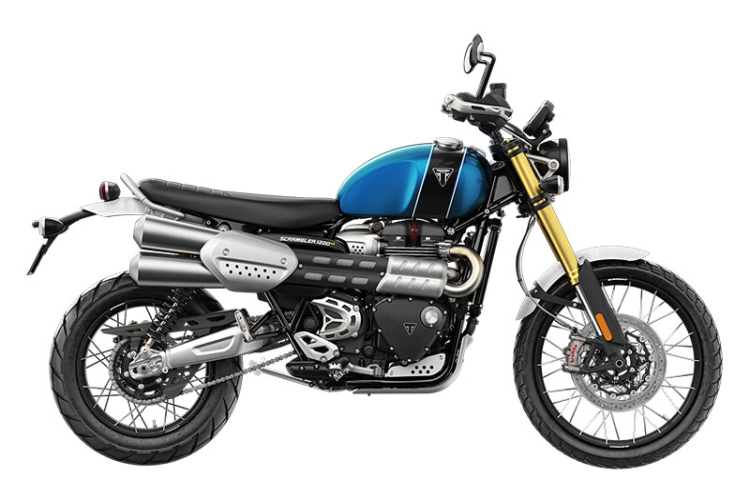

Triumph Scrambler 1200XE 2020 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1200.00 ccm (73.22 cubic inches) |
| Engine Details | Twin, four-stroke |
| Power | 89.00 HP (65.0 kW)) @ 7400 RPM |
| Torque | 110.00 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3950 RPM |
| Compression | 11.1:1 |
| Bore X Stroke | 97.6 x 80.0 mm (3.8 x 3.1 inches) |
| Fuel System | Injection. Multipoint sequential electronic fuel injection with SAI |
| Ignition | Digital-inductive type via engine management system |
| Cooling System | Liquid |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain |
| Fuel Consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse Gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission Details | Euro 4 |
| Exhaust System | High level stainless steel headers with twin chromed silencers |
| Frame Type | Tubular steel cradle |
| Front Brakes | Double disc. Brembo 2-piston floating caliper |
| Front Brakes Diameter | 320 mm (12.6 inches) |
| Front Suspension | Showa 47mm fully adjustable upside down forksl |
| Front Tyre | 90/90-21 |
| Front Wheel Travel | 200 mm (7.9 inches) |
| Rake | 26.9° |
| Rear Brakes | Single disc. Brembo 2-piston floating caliper ABS |
| Rear Brakes Diameter | 255 mm (10.0 inches) |
| Rear Suspension | Fully adjustable Ohlins twin shocks with piggy back reservoir |
| Rear Tyre | 150/70-17 |
| Rear Wheel Travel | 200 mm (7.9 inches) |
| Trail | 129 mm (5.1 inches) |
| Wheels | Spoked wheels |
| Dry Weight | 207.0 kg (456.4 pounds) |
| Fuel Capacity | 16.00 litres (4.23 gallons) |
| Oil Capacity | 4.50 litres (0.30 quarts) |
| Overall Height | 1,205 mm (47.4 inches) |
| Overall Width | 905 mm (35.6 inches) |
| Power Weight Ratio | 0.4300 HP/kg |
| Seat Height | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Color Options | Cobalt Blue/Jet Black, Fusion White/Brooklands Green |
| Factory Warranty | 24 months unlimited milage |
| Instruments | Analogue speedometer with odometer and trip information |
| Starter | Electric |
