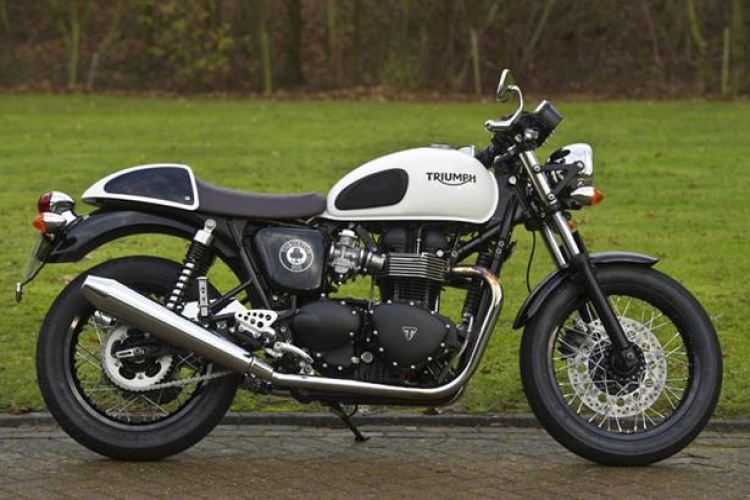

Triumph Thruxton Ace 2015 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 865.00 ccm (52.78 cubic inches) |
| Engine Type | 360º firing interval |
| Engine Details | Twin, four-stroke |
| Power | 69.00 HP (50.4 kW)) @ 7400 RPM |
| Torque | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM |
| Compression | 9.9:1 |
| Bore X Stroke | 90.0 x 90.0 mm (3.5 x 3.5 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Multipoint sequential electronic fuel injection with SAI |
| Ignition | Digital-inductive type via engine management system |
| Cooling System | Air |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Wet. multi-plate |
| Driveline | X ring chain |
| Fuel Consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse Gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Stainless steel headers. twin chromed upswept mufflers |
| Frame Type | Tubular steel cradle |
| Front Brakes | Single disc. Nissin 2-piston floating caliper |
| Front Brakes Diameter | 310 mm (12.2 inches) |
| Front Suspension | Kayaba 41mm forks with adjustable preload. 120mm travel |
| Front Tyre | 100/90-18 |
| Rake | 27.0° |
| Rear Brakes | Single disc. Nissin 2-piston floating caliper |
| Rear Brakes Diameter | 255 mm (10.0 inches) |
| Rear Suspension | Kayaba chromed spring twin shocks with adjustable preload. 106mm rear wheel travel |
| Rear Tyre | 130/80-17 |
| Trail | 97 mm (3.8 inches) |
| Wheels | Wire spoked |
| Dry Weight | 214.0 kg (471.8 pounds) |
| Fuel Capacity | 16.00 litres (4.23 gallons) |
| Oil Capacity | 4.50 litres (0.30 quarts) |
| Overall Height | 1,095 mm (43.1 inches) |
| Overall Length | 2,150 mm (84.6 inches) |
| Overall Width | 830 mm (32.7 inches) |
| Power Weight Ratio | 0.3224 HP/kg |
| Seat Height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 230.0 kg (507.1 pounds) |
| Color Options | White |
| Comments | Special edition celebrating Triumphs long association with the Ace Café in North London, a biker hangout from the 1960s that was the center of the café racer culture. |
| Factory Warranty | 2 year unlimited milage |
| Starter | Electric |
