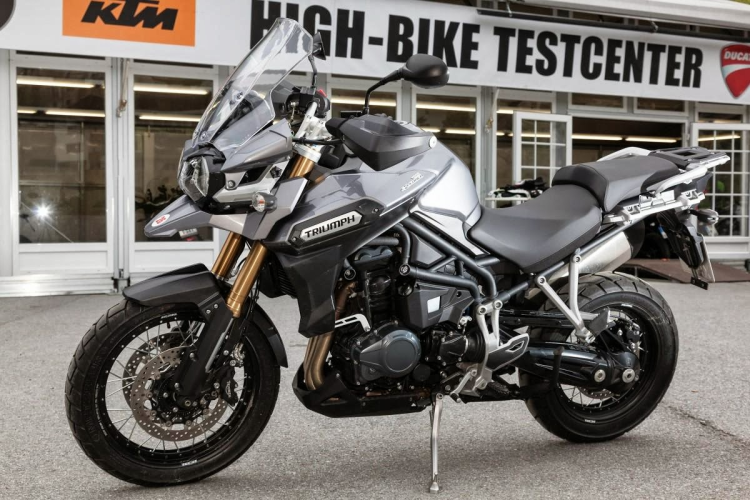

Triumph Tiger Explorer XC 2014 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Clutch | Wet. multi-plate |
| Fuel Consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse Gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Stainless steel 3 into 1 . side mounted stainless steel silencer |
| Displacement | 1215.00 ccm (74.14 cubic inches) |
| Engine Details | In-line three, four-stroke |
| Power | 137.00 HP (100.0 kW)) @ 9300 RPM |
| Torque | 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 RPM |
| Bore X Stroke | 85.0 x 71.4 mm (3.3 x 2.8 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Drive by wire. fuel injection |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Shaft drive (cardan) |
| Frame Type | Tubular steel Trellis frame |
| Front Brakes | Double disc. Floating discs, Nissin 4-piston calipers, Switchable ABS |
| Front Suspension | KYB 46mm upside down forks, 190mm travel |
| Front Tyre | 110/80-19 |
| Rake | 23.9° |
| Rear Brakes | Single disc. Nissin 2-piston sliding caliper, Switchable ABS |
| Rear Suspension | KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel |
| Rear Tyre | 150/70-17 |
| Trail | 91 mm (3.6 inches) |
| Wheels | Spoked, aluminium rims |
| Front Brakes Diameter | 305 mm (12.0 inches) |
| Front Wheel Travel | 190 mm (7.5 inches) |
| Rear Brakes Diameter | 190 mm (7.5 inches) |
| Rear Wheel Travel | 194 mm (7.6 inches) |
| Fuel Capacity | 20.00 litres (5.28 gallons) |
| Oil Capacity | 4.00 litres (0.26 quarts) |
| Overall Height | 1,410 mm (55.5 inches) |
| Overall Length | 2,248 mm (88.5 inches) |
| Overall Width | 885 mm (34.8 inches) |
| Seat Height | 837 mm (33.0 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 259.0 kg (571.0 pounds) |
| Alternate Seat Height | 857 mm (33.7 inches) If adjustable, highest setting. |
| Dry Weight | 235.5 kg (519.2 pounds) |
| Power Weight Ratio | 0.5817 HP/kg |
| Color Options | Price Information Matt Khaki Green |
| Factory Warranty | 24 months unlimited mileage |
| Instruments | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
| Starter | Electric |
| Comments | Windscreen. Auxiliary lights. Engine protection bars. Hand guards. Sump guard. |
