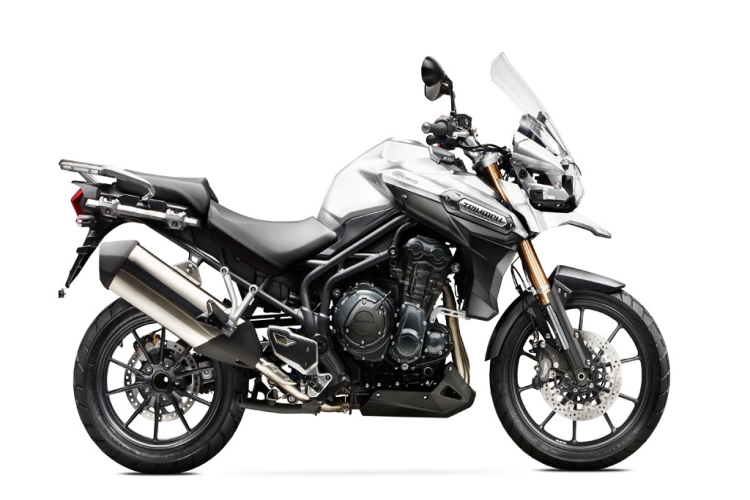

Triumph Tiger Explorer 2014 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1215.00 ccm (74.14 cubic inches) |
| Engine Details | In-line three, four-stroke |
| Power | 137.00 HP (100.0 kW)) @ 9300 RPM |
| Torque | 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 RPM |
| Bore X Stroke | 85.0 x 71.4 mm (3.3 x 2.8 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection. Drive by wire. |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Shaft drive (cardan) |
| Clutch | Wet, multi-plate hydraulically operated |
| Fuel Consumption | 4.90 litres/100 km (20.4 km/l or 48.00 mpg) |
| Greenhouse Gases | 113.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Stainless steel 3 into 1 . side mounted stainless steel silencer |
| Compression | 12.0:1 |
| Ignition | Digital-inductive type via engine management system |
| Frame Type | Tubular steel Trellis frame |
| Front Brakes | Double disc. Floating discs, Nissin 4-piston calipers, Switchable ABS. |
| Front Brakes Diameter | 305 mm (12.0 inches) |
| Front Suspension | Kayaba 46 mm upside down forks, adjustable preload |
| Front Tyre | 110/80-18 |
| Front Wheel Travel | 190 mm (7.5 inches) |
| Rake | 23.9° |
| Rear Brakes | Single disc. Nissin 2-piston sliding caliper. Switchable ABS. |
| Rear Brakes Diameter | 282 mm (11.1 inches) |
| Rear Suspension | Kayaba monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment |
| Rear Tyre | 150/70-17 |
| Rear Wheel Travel | 194 mm (7.6 inches) |
| Trail | 106 mm (4.2 inches) |
| Wheels | Cast aluminium alloy 10-spoke |
| Alternate Seat Height | 857 mm (33.7 inches) If adjustable, highest setting. |
| Dry Weight | 228.0 kg (502.7 pounds) |
| Fuel Capacity | 20.00 litres (5.28 gallons) |
| Oil Capacity | 4.00 litres (0.26 quarts) |
| Overall Height | 1,410 mm (55.5 inches) |
| Overall Length | 2,248 mm (88.5 inches) |
| Overall Width | 885 mm (34.8 inches) |
| Power Weight Ratio | 0.6009 HP/kg |
| Seat Height | 837 mm (33.0 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 259.0 kg (571.0 pounds) |
| Color Options | Cranberry Red, Graphite |
| Comments | Windscreen. Traction control. Cruise control. Ride By Wire. |
| Instruments | LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system |
| Starter | Electric |

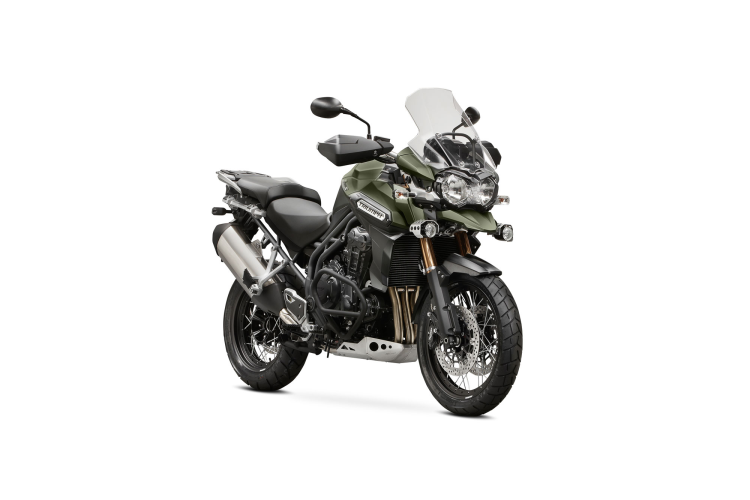

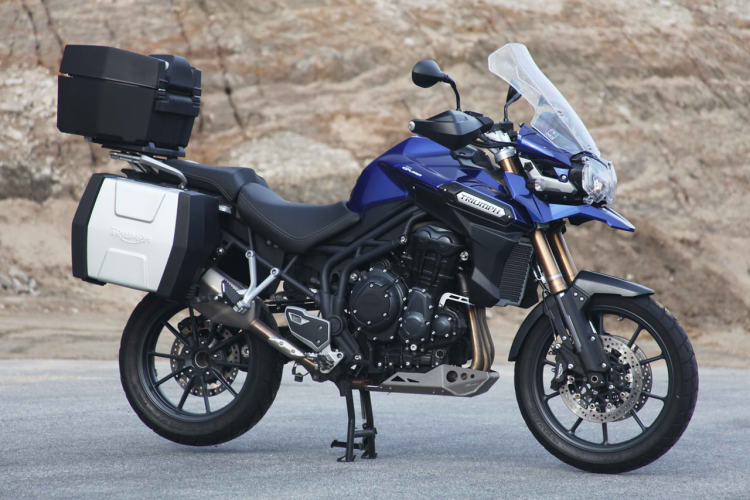

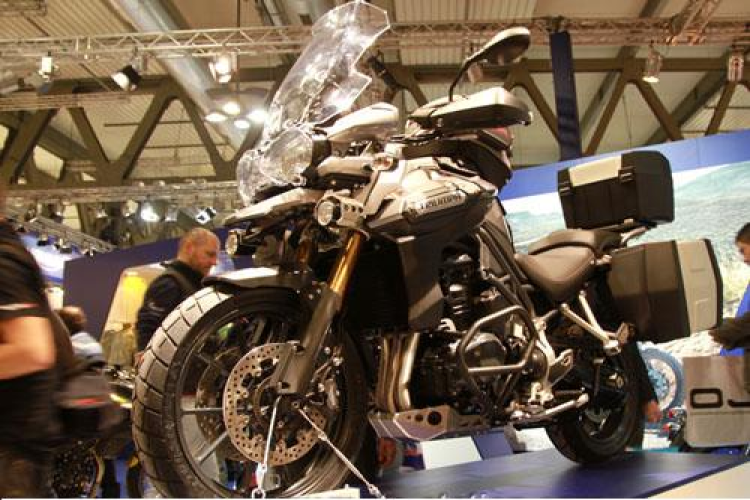

Other Triumph Tiger Explorer variants
