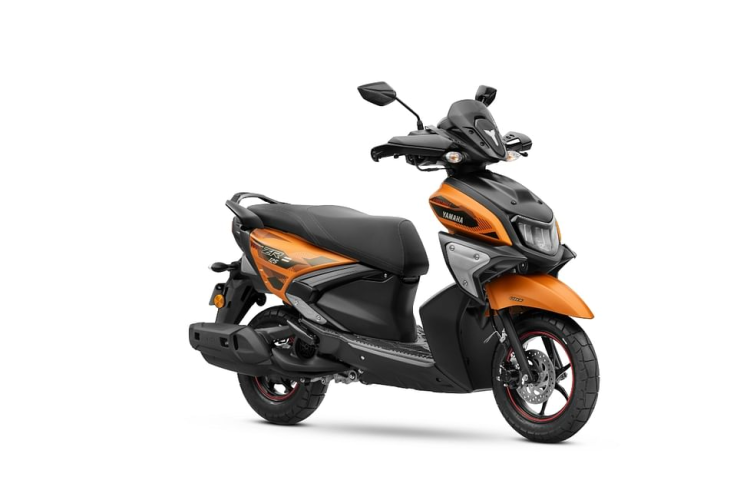

Yamaha Ray ZR 125Fi 2021 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine Type | Single cylinder, four-stroke |
| Power | 8.1 HP (5.9 kW)) @ 5000 RPM |
| Torque | 9.7 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 5000 RPM |
| Compression | 10.2:1 |
| Bore X Stroke | 52.4 x 57.9 mm (2.1 x 2.3 inches) |
| Valves Per Cylinder | 2 |
| Fuel System | Injection |
| Ignition | TCI |
| Lubrication System | Wet sump |
| Cooling System | Air |
| Gearbox | Automatic |
| Transmission Type Final Drive | Belt (final drive) |
| Clutch | Dry centrifugal |
| Frame Type | Steel tube underbone |
| Front Brakes | Single disc |
| Front Brakes Diameter | 190 mm (7.5 inches) |
| Front Suspension | Telescopic fork |
| Front Tyre | 90/90-12 |
| Rake | 26.5° |
| Rear Brakes | Expanding brake (drum brake) |
| Rear Brakes Diameter | 190 mm (7.5 inches) |
| Rear Suspension | Unit swingarm |
| Rear Tyre | 110/90-10 |
| Trail | 100 mm (3.9 inches) |
| Fuel Capacity | 5.20 litres (1.37 US gallons) |
| Ground Clearance | 145 mm (5.7 inches) |
| Overall Height | 1190 mm (46.9 inches) |
| Overall Length | 1880 mm (74.0 inches) |
| Overall Width | 750 mm (29.5 inches) |
| Seat Height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Weight Incl Oil Gas Etc | 99.0 kg (218.3 pounds) |
| Color Options | Purplish Blue Metallic, Sparkle Green |
| Comments | Sold in Asia. |
| Starter | Electric & kick |
