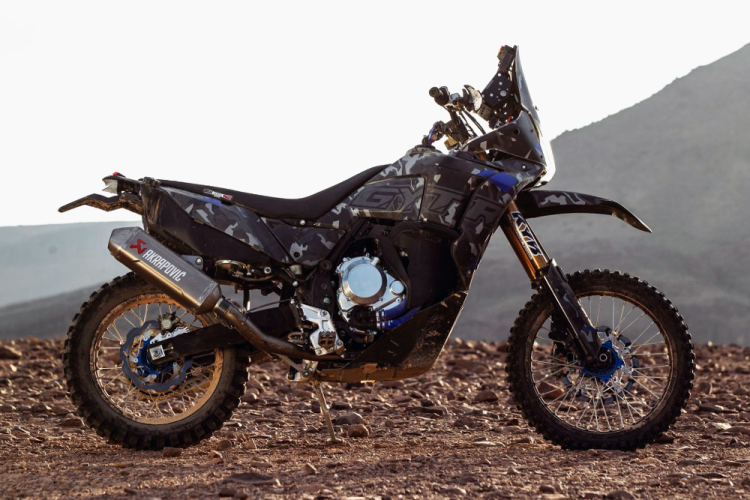

Yamaha Tenere 700 Raid Prototype 2022 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 689.0 ccm (42.04 cubic inches) |
| Engine Type | Twin, four-stroke |
| Power | 72.4 HP (52.9 kW)) @ 9000 RPM |
| Torque | 68.0 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 6500 RPM |
| Compression | 11.5:1 |
| Bore X Stroke | 80.0 x 68.6 mm (3.1 x 2.7 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Ignition | GYTR ECU |
| Lubrication System | Wet sump |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain (final drive) |
| Clutch | Rekluse heavy duty clutch |
| Fuel Consumption | 4.30 litres/100 km (23.3 km/l or 54.70 mpg) |
| Greenhouse Gases | 99.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust System | Titanium Akrapovič race |
| Frame Type | Steel tube backbone, double cradle |
| Front Brakes | Double disc. Hydraulic. Selectable ABS: |
| Front Brakes Diameter | 300 mm (11.8 inches) |
| Front Suspension | 48mm long travel front forks |
| Front Tyre | 90/90-R21 |
| Front Wheel Travel | 270 mm (10.6 inches) |
| Rake | 27.0° |
| Rear Brakes | Single disc. Hydraulic. Selectable ABS:.. |
| Rear Brakes Diameter | 267 mm (10.5 inches) |
| Rear Suspension | Swingarm, link |
| Rear Tyre | 150/70-R18 |
| Rear Wheel Travel | 260 mm (10.2 inches) |
| Trail | 105 mm (4.1 inches) |
| Wheels | Spoked wheels. Pirelli Scorpion Rally STR tires |
| Fuel Capacity | 15.90 litres (4.20 US gallons) |
| Oil Capacity | 2.60 litres (2.75 US quarts) |
| Overall Length | 2370 mm (93.3 inches) |
| Overall Width | 905 mm (35.6 inches) |
| Color Options | Sky Blue |
| Instruments | Multi-function LCD display with gear position, fuel level, two trip meters and estimated fuel range, average and instant fuel consumption |
| Light | LED headlight |
| Starter | Electric |
