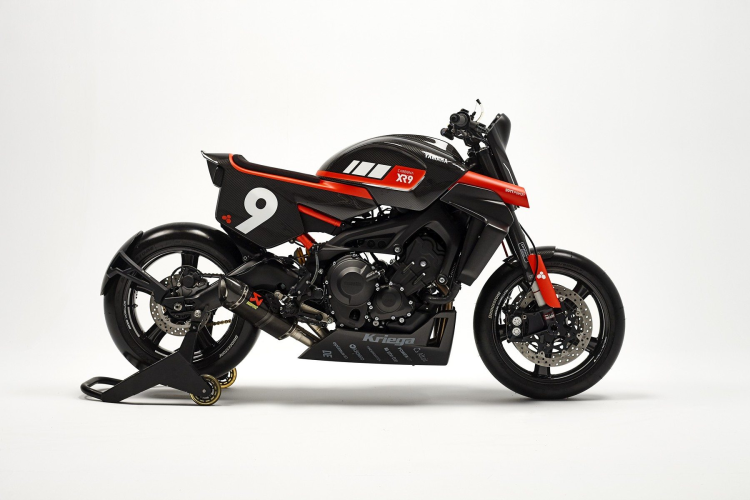

Yamaha XR9 Carbona 2021 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 847.0 ccm (51.68 cubic inches) |
| Engine Type | Crossplane crankshaft |
| Engine Details | In-line three, four-stroke |
| Power | 113.5 HP (82.8 kW)) @ 10000 RPM |
| Torque | 87.5 Nm (8.9 kgf-m or 64.5 ft.lbs) @ 8500 RPM |
| Compression | 11.5:1 |
| Bore X Stroke | 78.0 x 59.1 mm (3.1 x 2.3 inches) |
| Valves Per Cylinder | 4 |
| Fuel System | Injection |
| Ignition | TCI |
| Lubrication System | Wet sump |
| Cooling System | Liquid |
| Gearbox | 6-speed |
| Transmission Type Final Drive | Chain |
| Clutch | Multiplate assist-and-slipper wet clutch |
| Fuel Consumption | 5.20 litres/100 km (19.2 km/l or 45.23 mpg) |
| Greenhouse Gases | 120.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Frame Type | Diamond |
| Front Brakes | Double disc. ABS. Hydraulic. |
| Front Suspension | Telescopic forks |
| Front Tyre | 120/70-ZR17 |
| Front Wheel Travel | 137 mm (5.4 inches) |
| Rake | 25.0° |
| Rear Brakes | Single disc. ABS. Hydraulic. |
| Rear Suspension | Single shock, adjustable preload and rebound damping |
| Rear Tyre | 180/55-ZR17 |
| Rear Wheel Travel | 130 mm (5.1 inches) |
| Trail | 103 mm (4.1 inches) |
| Fuel Capacity | 14.00 litres (3.70 gallons) |
| Ground Clearance | 135 mm (5.3 inches) |
| Oil Capacity | 3.40 litres (3.59 US quarts) |
| Overall Height | 1135 mm (44.7 inches) |
| Overall Length | 2075 mm (81.7 inches) |
| Overall Width | 815 mm (32.1 inches) |
| Seat Height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Color Options | Grey/orange |
| Comments | A Yamaha Yard Built project by Bottpower modifying a XSR900. Fuel tank cover with integrated air intakes (carbon fibre). Carbon fibre seat and tail including alcantara saddle, tail and signal lights. |
| Starter | Electric |
