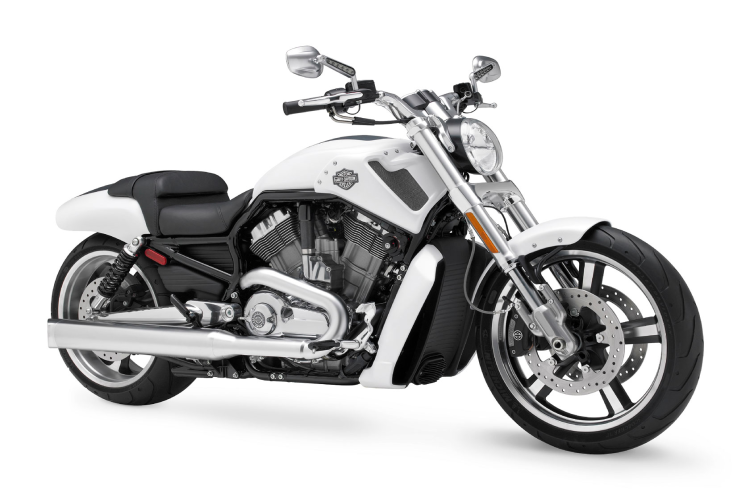

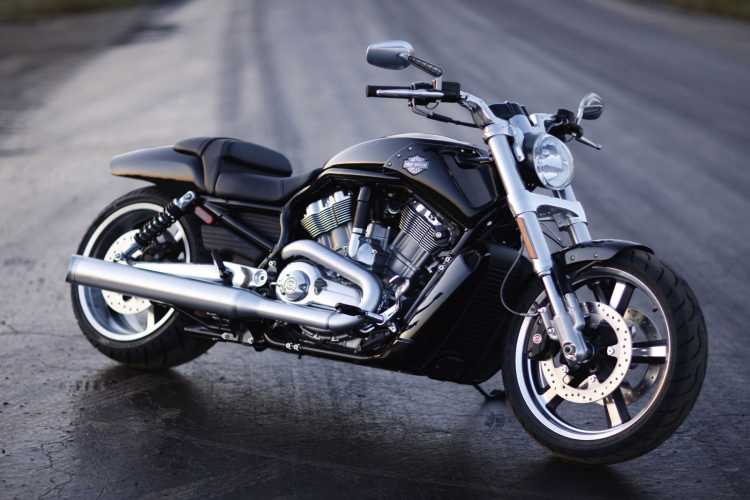

Harley-Davidson VRSCF V-Rod Muscle 2012 specs
Start the search for your favourite bikes by selecting the make and model and check specs like engine size, suspensions, weight etc.
| Displacement | 1250.00 ccm (76.28 cubic inches) |
| Engine Details | V2, four-stroke |
| Torque | 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 6500 RPM |
| Compression | 11.5:1 |
| Bore X Stroke | 105.0 x 72.0 mm (4.1 x 2.8 inches) |
| Fuel System | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling System | Liquid |
| Gearbox | 5-speed |
| Transmission Type Final Drive | Belt |
| Clutch | 9-plate, wet, A and S (Assist and Slip) |
| Exhaust System | Satin chrome, dual side exhaust system |
| Engine Type | Liquid-cooled, Revolution®, 60° V-Twin. Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment. |
| Valves Per Cylinder | 4 |
| Lubrication System | Pressurized, dry-sump |
| Driveline | Primary Drive Gear, 117/64 ratio Final Drive Belt, 72/28 ratio. High-performance carbon-fiber drive belt. |
| Fuel Consumption | 6.36 litres/100 km (15.7 km/l or 36.98 mpg) |
| Greenhouse Gases | 147.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Frame Type | Black steel perimeter upper frame with hydroformed main rails; |
| Front Brakes | Double disc. Bremo, 4-piston calipers, ABS |
| Front Brakes Diameter | 300 mm (11.8 inches) |
| Front Suspension | 43 mm inverted |
| Front Tyre | 120/70-ZR19 |
| Front Wheel Travel | 102 mm (4.0 inches) |
| Rake | 34.0° |
| Rear Brakes | Single disc. Bremo, 4-piston calipers, ABS |
| Rear Brakes Diameter | 300 mm (11.8 inches) |
| Rear Suspension | Preload adjustable |
| Rear Tyre | 240/40-R18 |
| Rear Wheel Travel | 74 mm (2.9 inches) |
| Trail | 141 mm (5.6 inches) |
| Seat | Deep, drag-style two-up seat |
| Wheels | Black, 5-Spoke Cast Aluminum |
| Dry Weight | 292.0 kg (643.7 pounds) |
| Fuel Capacity | 18.90 litres (4.99 gallons) |
| Ground Clearance | 105 mm (4.1 inches) |
| Overall Length | 2,410 mm (94.9 inches) |
| Seat Height | 640 mm (25.2 inches) If adjustable, lowest setting. |
| Oil Capacity | 4.70 litres (0.31 quarts) |
| Weight Incl Oil Gas Etc | 305.3 kg (673.0 pounds) |
| Color Options | Vivid Black, Brilliant Silver Pearl, Black Denim, Red Hot Sunglo |
| Comments | Platinum powder-coated engine with polished treatment covers; Chopped rear fender; 240mm wide rear tyre; Forward pulled back footpegs; Passenger footpegs; Internally wired handlebars with “fat” integrated cast riser; Two-piece, two-up textured vinyl seat; Satin chrome headlamp mount; Satin black headlamp bucket; Wide angular air box cover and air box side covers; LED front turn signals incorporated into mirror stems; 4-piston front and rear Brembo® brakes with dual front rotor; 43mm inverted forks; Stylised rear shocks; Slipper clutch; ABS as standard |
| Starter | Electric |
| Electrical | Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
| Factory Warranty | 2 years, unlimited mileage. |
| Instruments | Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer |
| Light | Quartz halogen headlamp, 55-watt low beam, 65-watt high beam. Else LED light. |
